Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales

Детали продукта:

Место происхождения:	Китай
Фирменное наименование:	RJ
Сертификация:	CE/ROSE
Номер модели:	RJ

Подробная информация

Место происхождения:

Китай

Фирменное наименование:

Сертификация:

CE/ROSE

Номер модели:

особенности:

Датчик из алюминиевого сплава

Теория:

датчик датчика напряжения

Мощность:

300 г

Материал:

Алюминиевая сплавная нагрузка

Размер:

45*9,3*6 мм

Номинальная производительность:

00,7±0,1 мВ/В

Выделить:

High Light

Выделить:

aluminum alloy load cell sensor

300g-3kg load cell sensor

electronic scale load cell sensor

Информация о торговле

Количество мин заказа:

Цена:

$3-10

Упаковывая детали:

коробка или деревянная клеть

Время доставки:

5-8 рабочих дней

Условия оплаты:

Аккредитив, безотзывный аккредитив, документы против акцепта, документы против платежа, банковский п

Поставка способности:

2000PC/Month

Характер продукции

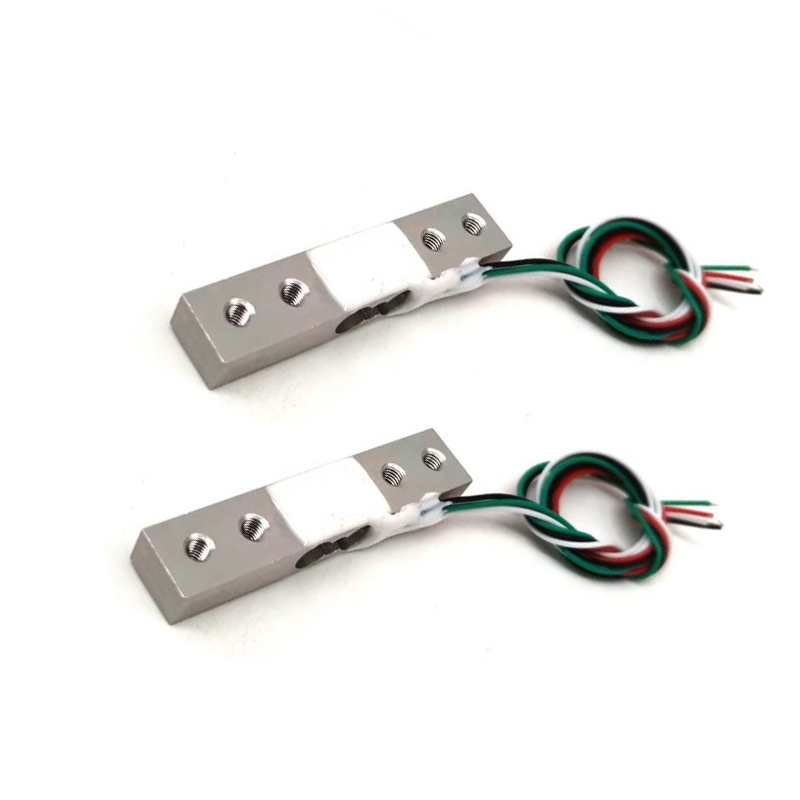

Electronic scale weight sensor load cell 300g 500g 750g 1kg 2kg 3kg Load cell for coffee scales

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 0

Model	RJ
Capacity	300g, 500g,750g, 1kg, 2kg, 3kg
Comprehensive Error	0.05 % F.S
Output sensitivity	300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V, 1kg-3kg: 1.0±0.15 MV/V
Non-linearity	0.05 (%F.S.)
Repeatability	0.05 (%F.S.)
Hysteresis	0.05 (%F.S.)
Creep	0.1 [(3 min)%F.S.]
Zero Output	± 0.1 m V/V
Temp. Effect on Zero	0.2(%F.S/10℃)
Temp. Effect on Span	0.05(%F.S 10℃)
Input Resistance	1000 ± 10 Ω
Output Resistance	1050 ± 100 Ω
Insulation Resistance	≥ 2000 MΩ
Excitation Voltage	3~10Vdc
Operating Temperature range	-10~+40℃
Four corner error	± 0.1% F.S
Safe overload	120% F.S
Ultimate Overload	150% F.S
Cable length	Φ0.6 x 110 mm
Wiring	Excitation +: Red, Excitation-: Black Signal+: Green, Signal- : White
Application	Jewelry scale, small weight scale, kitchen scale, force test

Aluminum Alloy Load Cell Sensor 300g-3kg for Electronic Scales 1
