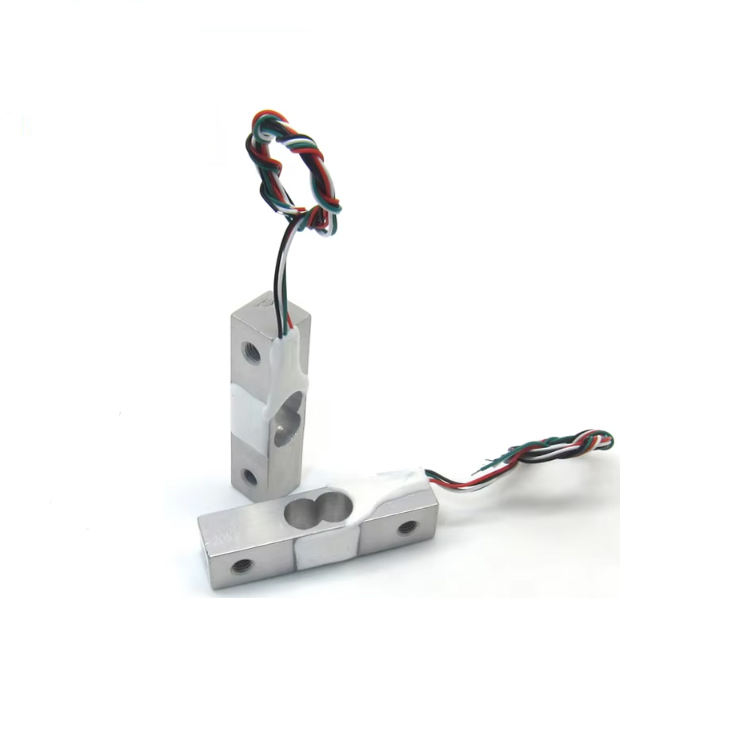

Single Point Load Cell Sensor 1-50KG Capacity Analog Output

Детали продукта:

Место происхождения:	Китай
Фирменное наименование:	RJ
Сертификация:	CE/ROSE
Номер модели:	RJ

Подробная информация

Место происхождения:

Китай

Фирменное наименование:

Сертификация:

CE/ROSE

Номер модели:

Выход:

Сетноой-аналогов датчик

Мощность:

1kg-50kg

Кабель:

0.8 х 220 мм

Импеданс ввода:

1000±50 Ом

Класс точности:

00,05%

Всесторонняя ошибка:

00,05 % F.S.

Выделить:

High Light

Выделить:

Single point load cell 1-50KG

Analog output load cell sensor

50KG capacity load cell

Информация о торговле

Количество мин заказа:

Цена:

$3-10

Упаковывая детали:

коробка или деревянная клеть

Время доставки:

5-8 рабочих дней

Условия оплаты:

Аккредитив, безотзывный аккредитив, документы против акцепта, документы против платежа, банковский п

Поставка способности:

2000PC/Month

Характер продукции

Body Scale Miniature Weight Sensor Single Point Load Cell 2 Kg 5 Kg 10 Kg 15 Kg 20 Kg 50 Kg

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 0

Parameters

Capacity	1kg-50kg
Rated Output	1.0±0.2mV/V
Comprehensive error	0.05 %F.S
Non-linearity	0.05%F.S
Hysteresis	0.05%F.S
Repeatability	0.05%F.S
Creep	0.05 [(3 min)% F.S.]
Zero output	-0.15~+0.05 m V/V
Temp. effect on zero	0.3 (%F.S/10℃)
Temp. effect on span	≤0.15 (%F.S/10℃)
Input impedance	1000±50 Ω
Output impedance	1000±50 Ω
Insulation resistance	≥2000 MΩ
Operating compensated range	-10~+40
Recommended excitation voltage	3-10 VDC
Safe overload	120%F.S
Ultimate Overload	150%F.S
Cable	Φ0.8 x 220mm
Connection	Excitation: Red+, Black- Signal: Green+, White-

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 2

Inatallation

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 3

Packing & Transport

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 4

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
