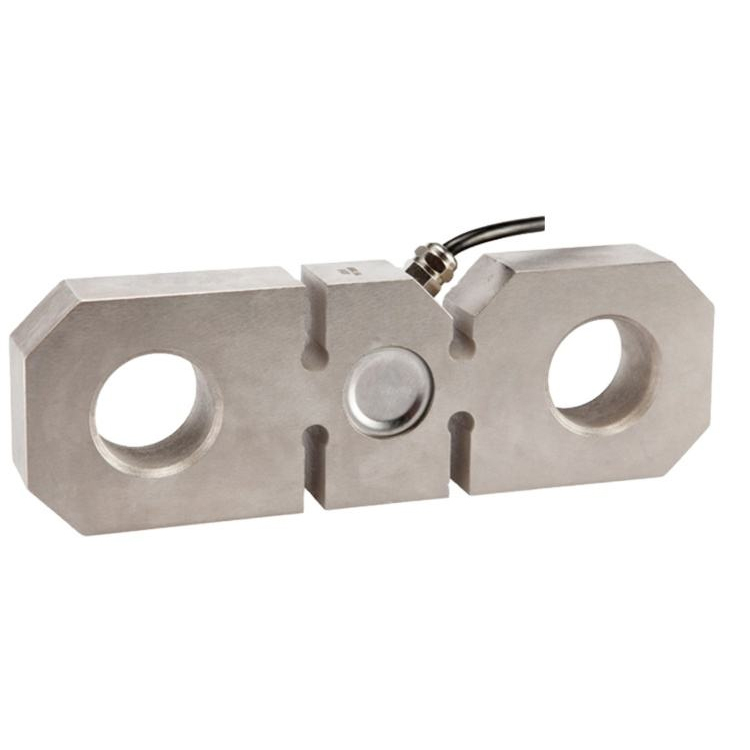

3-50Ton Tension Load Cell Sensor for Crane Scale IP67

3-50Ton Tension Load Cell Sensor for Crane Scale IP67

Детали продукта:
Место происхождения: Китай
Фирменное наименование: RJ
Сертификация: CE/ROSE
Номер модели: RJ
Подробная информация
Место происхождения:
Китай
Фирменное наименование:
RJ
Сертификация:
CE/ROSE
Номер модели:
RJ
Материал:
Легированная сталь или нержавеющая сталь
Класс точности:
00,03% F.S.
Безопасная перегрузка:
150% RO
Степень IP:
IP67
Аксессуары:
наконечник рулевой тяги, D-образная скоба
Приложение:
batch weigher crane scale hopper scale
Выделить:

High Light

Выделить:

3-50Ton tension load cell

,

crane scale load sensor

,

IP67 waterproof load cell

Информация о торговле
Количество мин заказа:
1
Цена:
$30-38
Упаковывая детали:
коробка или деревянная клеть
Время доставки:
5-8 рабочих дней
Условия оплаты:
Аккредитив, безотзывный аккредитив, документы против акцепта, документы против платежа, банковский п
Поставка способности:
2000PC/Month
Характер продукции

3Ton 5Ton 10Ton 30Ton 50Ton batch weigher crane scale hopper scale tension load cell sensor

3-50Ton Tension Load Cell Sensor for Crane Scale IP67 0


Capacity: 3ton—100ton

Material: Alloy steel

Application: crane scale, force measurement



Parameter:


Application Crane scale
Model RJ
Capacity 3t, 5t, 8t, 10t, 12t, 15t, 30t, 100t
Output Sensitivity 1.5±0.1  1.0±0.1(100t)
Accuracy 0.03% F.S
Temperature effect on Span 0.0016% RO/℃
Temperature effect on zero 0.003% RO/℃
Input resistance 365±10Ω
Output resistance 350±5Ω
Compensated temp. range -10~+40℃
Operating temp. range -35~+80℃
Recommend Excitation

10~15VDC

3-50Ton Tension Load Cell Sensor for Crane Scale IP67 1

Packing & Transport



3-50Ton Tension Load Cell Sensor for Crane Scale IP67 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.


Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.


Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
