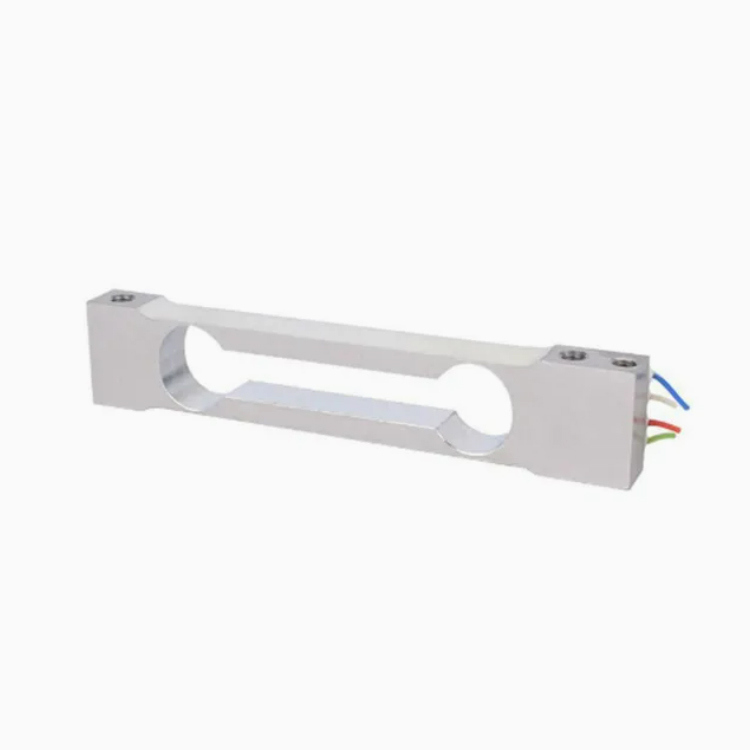

100g/200g Parallel Beam Weighing Sensor Aluminium Alloy Single Point Load Cell
The single point load cell works by converting the weight carried or the force applied to it into a signal. When a load is applied to a single point load cell, the resistance changes, resulting in a change in output voltage. Single point load cells are used alone in small to medium sized scales.
| Product name |
Single Point Weight Sensor |
| Capacity |
100g,200g |
| Rated output |
0.9±0.1mV/V |
| Zero Balance |
±0.05mV/V |
| Creep(30min) |
≤0.0166%F.S. |
| Non-linearity |
≤0.015%F.S. |
| Hysteresis |
≤0.015%F.S. |
| Repeatability |
≤0.015%F.S. |
| Input impedance |
405±20Ω |
| Output impedance |
350±10Ω |
| Temp.effect on output |
0.02%F.S./10 ºC |
| Temp.effect on zero |
0.03%F.S./10 ºC |
| Insulation resistance |
≥5000MΩ/100V(DC) |
| Recommended excitation |
5~15V |
| Maximum excitation |
20V |
| Compensated Temp Range |
-10~40 ºC |
| Operating Temp Range |
-10~50 ºC |
| Safe overload |
150%F.S. |
| Ultimate overload |
200%F.S. |
| Cable size |
diameter 1x100mm |
| Material |
Aluminium alloy |
| Max.paltform size |
50mmx50mm |
Xi'an Ruijia Measuring Instruments Co., Ltd. is a manufacturer of force sensors and related products, dedicated to providing high-quality solutions for various industries. With a commitment to innovation, reliability, and precision, we have established ourselves as a trusted partner for businesses worldwide.
Founded in 2005, we have accumulated years of experience in the field of weighing technology, enabling us to deliver products tailored to our customers' needs. Our product range includes a comprehensive selection of load cells, weighing modules, controllers, systems, and software solutions. We offer a diverse array of weighing products suitable for industrial automation, logistics, transportation, healthcare, retail, and more.
At Xi'an Ruijia Measuring Instruments Co., Ltd., we pride ourselves on our technological expertise and dedication to continuous improvement. Our team of skilled engineers is committed to developing innovative solutions that push the boundaries of weighing technology, ensuring our products meet the highest standards of performance and accuracy. We serve a global clientele, catering to diverse market sectors across the globe. Our products are utilized by businesses of all sizes, from small enterprises to multinational corporations, in both domestic and international markets.
Quality is at the core of everything we do. We adhere to stringent quality control measures throughout the manufacturing process to ensure that our products meet or exceed industry standards. Our commitment to quality has earned us a reputation for reliability and excellence among our customers. Besides, customer satisfaction is our top priority. We offer comprehensive customer service and support, including technical consultation, pre-sales assistance, and after-sales service, to ensure a seamless experience for our clients.
With a focus on innovation, quality, and customer satisfaction, Xi'an Ruijia Measuring Instruments Co., Ltd. is your trusted partner for all your weighing sensor needs. Contact us today!
